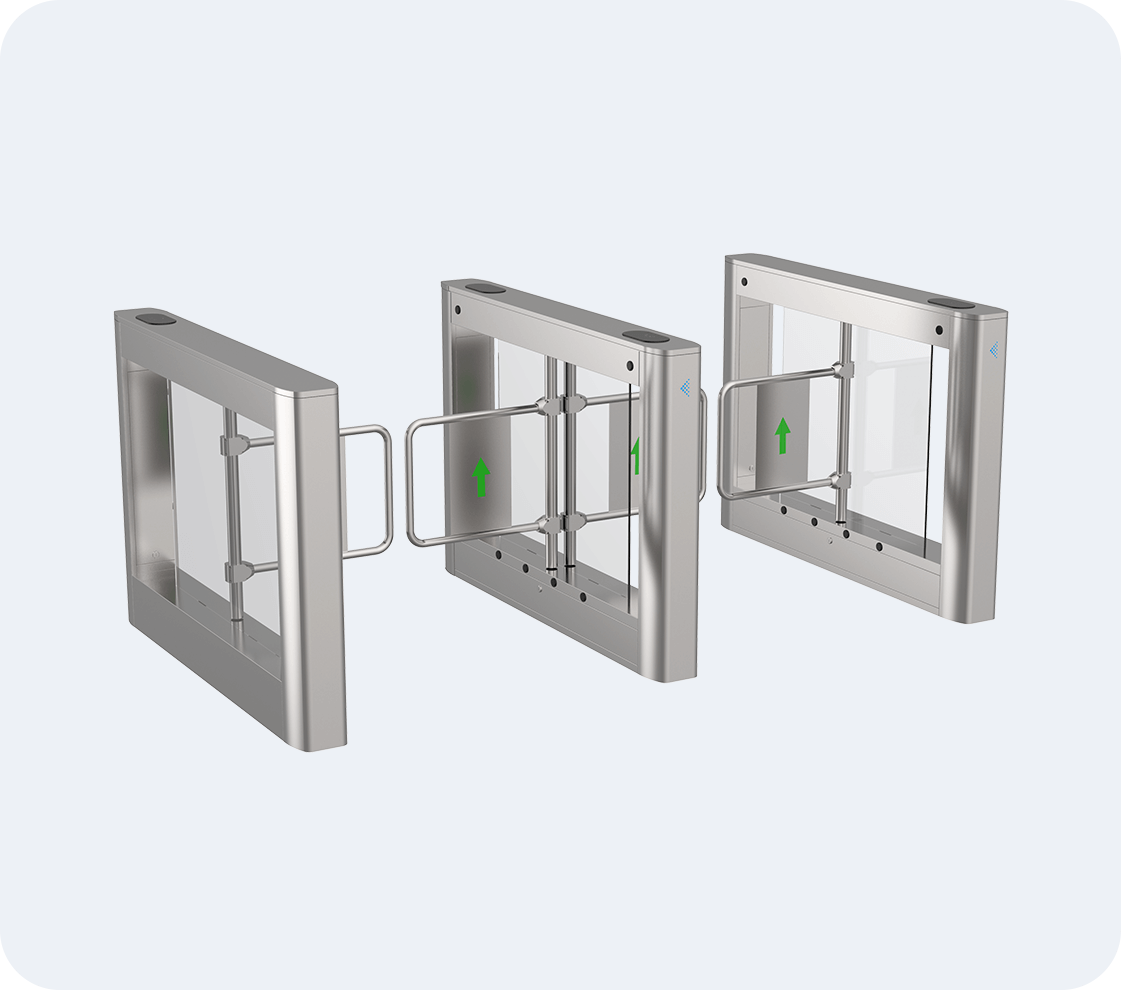

Pedestrian Gate HSG02
-Product Dimensions: 1300 × 160 × 1020 mm
Passage Width: ≤950 mm
-Lifespan: Over 5 million continuous open-close cycles
-Throughput Speed: ≤30 persons per minute
-Applicable Scenarios: Suitable for indoor, outdoor, and semi-outdoor pedestrian and bicycle access areas
-Housing Material:
Top Cover: SUS304 stainless steel, 1.2mm thick
Body: SUS304 stainless steel, 1.0mm thick
-Swing Arm Material: 10mm acrylic
-Operating Temperature: -30°C to 70°C
Pedestrian Gate HSG03
-Product Dimensions: 1400 × 166 × 1000 mm
-Passage Width: ≤1050 mm
-Lifespan: Over 8 million continuous open-close cycles
-Throughput Speed: ≤35 persons per minute
Applicable Scenarios: Suitable for indoor, outdoor, and semi-outdoor environments
-Housing Material:
Top Cover: Anodized aluminum alloy, 5mm thick
Body: Corrosion-resistant electro-galvanized sheet, 1.0mm thick
Side Panels: Anodized aluminum alloy, 3mm thick
-Swing Arm Material: 10mm acrylic (optional stainless steel curved tube)
-Operating Temperature: -35°C to 75°C
Facial Recognition Camera AIF07
-Screen: 7-inch high-resolution IPS
Camera: Dual-lens, 2MP (RGB) + 2MP (IR)
-Resolution: 1920 × 1080
-Operating Temperature: -20°C to 70°C
-Maximum Local Face Database Storage: 30,000 faces
-Offline Recognition Record Storage: 100,000 records
-Recognition Accuracy: ≥99.9%
-Liveness Detection: 99.99% rejection rate, resistant to spoofing attacks using mobile/PC photos or videos, and black-and-white/color printed photos
-Protection Level: IP67
